Heavy Duty Storage Racks
Modular pallet and slotted angle racking systems engineered for maximum vertical space utilisation in warehouses, manufacturing plants, and distribution centres. From single-level ground racking to multi-tier installations up to 12 metres high — each system is designed to your floor plan, load profile, and operational workflow
EYEBROW:
QUICK SPEC PILLS:
Ispat Shilpi heavy duty storage racks are engineered to help you reclaim that vertical space safely and systematically. Our modular racking systems are designed around your specific operational requirements — your pallet dimensions, your forklift aisle widths, your load per beam level, and your ceiling height — and fabricated to tight tolerances that ensure level, plumb installation and consistent beam-level performance.
Whether you need a simple two-level slotted angle shelving system for a small parts store, or a complex multi-tier drive-in pallet racking installation for a large distribution centre, our engineering team will design a solution that maximises your storage density while maintaining safe forklift access and picking ergonomics
Technical Specifications
| Material | Hot Rolled Steel / Galvanised Iron (application-dependent) |
|---|---|
| Load per Beam Level | Hot Rolled Steel / Galvanised Iron (application-dependent) |
| Rack Type |
Pallet Racking | Slotted Angle Shelving | Multi-Tier Racking. |
| Upright Profile | Roll-formed steel columns with punched slots at standard pitch. |
| Beam Type | Box beam with safety locking clips. |
| Decking Options | Wire mesh decking | Steel sheet decking | Open beam (pallet direct) |
| Surface Finish | Powder Coated (standard) | Galvanised (cold storage / outdoor). |
| Aisle Width | Designed to your forklift turning radius — specify on order. |
| Compliance | ISO 9001:2015 Certified | Designed to IS: 800 steel structure standard. |
| Custom Configurations | Yes — any bay width, beam pitch, height, or load rating. |
Key Features & Benefits
Modular & Reconfigurable
Beam levels can be adjusted to accommodate changing inventory profiles without specialist tools or structural modifications.
High Load Capacity
Up to 3,000 kg per beam level, with upright capacities designed to your total stacked load requirement.
Vertical Space Optimisation
Multi-tier configurations up to 12 m maximise cubic storage capacity without expanding your building footprint.
Forklift Compatible
Standard bay widths and aisle configurations designed around your operating forklift — reach truck, counterbalance, or narrow aisle.
Wire Mesh Decking Option
Allows sprinkler system coverage to reach all rack levels, supporting fire safety compliance requirements.
Galvanised Variant for Cold Storage
Hot-dip galvanised finish provides corrosion resistance in high-humidity refrigerated environments.

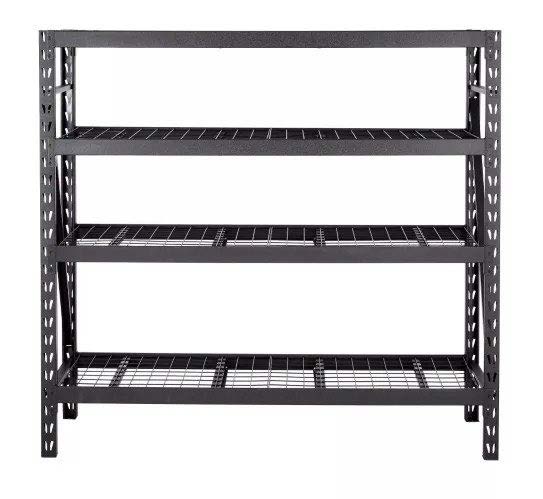

Slotted Angle Shelving Option
Cost-effective, fully adjustable shelving for light to medium loads in small parts stores, mezzanines, and archives.
Complete Installation Service
End-to-end supply and installation including floor bolt-down, beam safety clips, and load capacity signage.
Applications & Industries

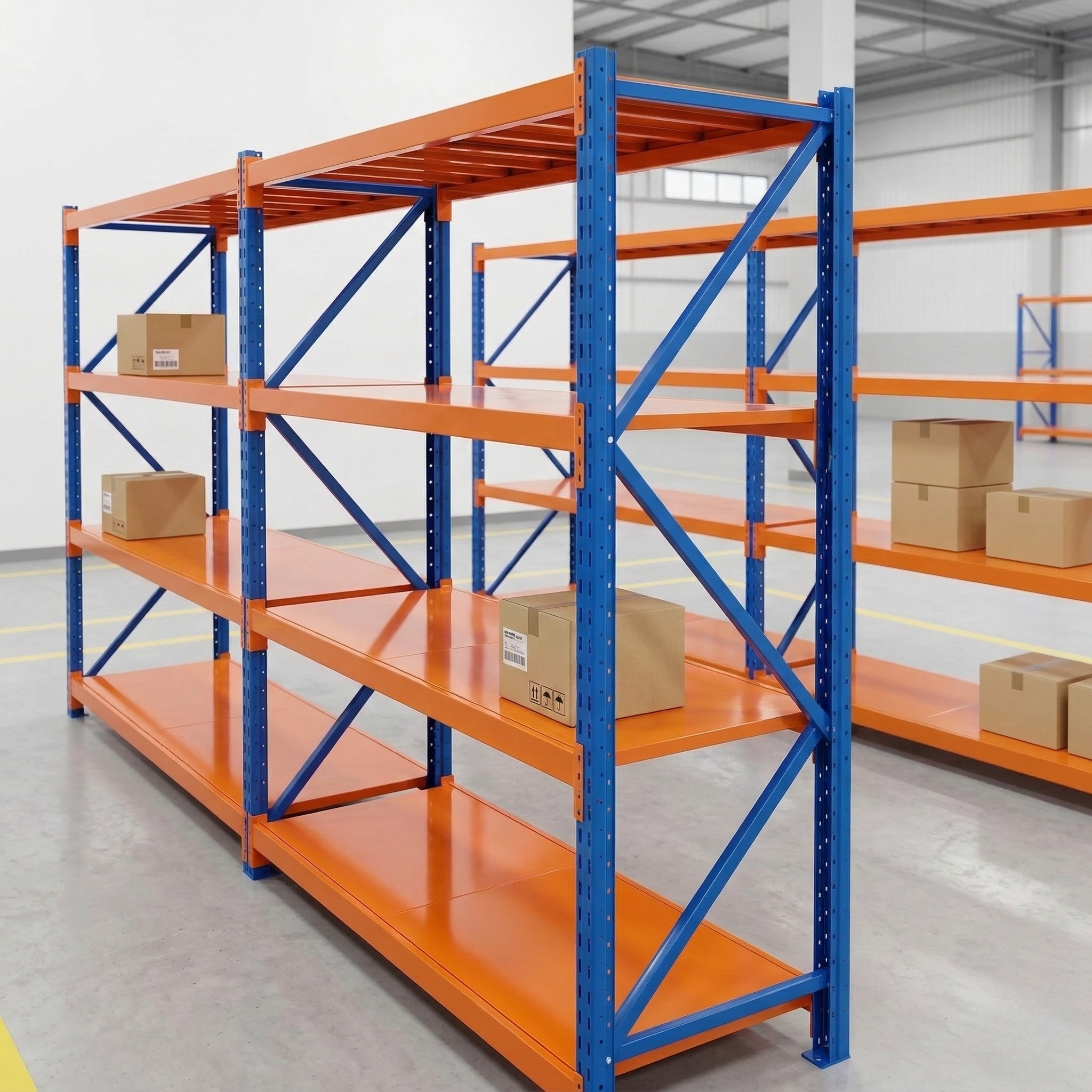

Warehouse & Distribution Centres
High-density pallet racking for bulk storage and pick-face replenishment.
Manufacturing Plants
Raw material, WIP, and finished goods storage on production floors.
Cold Storage Facilities
Galvanised racking systems for refrigerated and frozen storage environments.
E-Commerce Fulfilment
High-bay racking for SKU-dense storage combined with mezzanine pick floors.
Pharmaceutical & Healthcare
Clean, adjustable shelving for GMP-compliant storage environments.
Automotive Component Stores
Heavy-duty racking for cast, stamped, and machined component storage.
